Session 3: Geocoding and Nearest Neighbour Analysisยถ
Written by Men Vuthy, 2021
Overview:ยถ
In this session, we will learn about how to geocode the list of addresses from OpenStreetMap to coordinates and how to conduct Nearest Neighbour Analysis (NNA) to find the nearest point from a collection of data points to the target. In this lesson, we go through different kinds of data manipulation and spatial analysis, especially we will learn how to write a definition function for NNA.
After this session, you will understand how to:
Convert location names to coordinates
Geocode a set of addresses to coordinate data from OpenStreetMap
Plot those addresses location in a map
Conduct spatial queries. Ex: finding points in polygon
Find the nearest locations or points between two sets of data.
Downloading data
The data used in this session is a list of random addresses in New York, The United States and available at github. However, the original dataset seems a lot which will lengthen the process time, and also some address is not correctly written. For this reason, it is reduced and revised to a better version of address and easy to run in Python.
Dataset:
addresses.txt
1. Introduction to Geocoding in Geopandasยถ
Geocoding is the process supported by geopandas to convert place names or addresses to location on Earth through geopy. Geopy and other geocoding libraries make it easy to locate the coordinates of addresses, cities, countries, and landmarks across the glob by using web service providers. Geocoding services offered by Geopy includes:
Most of available service providers may require parameters such as API keys and it is mostly not free. Therefore, the commonly-used service and often free of charge is Open Street Map Nominatim.
In geopandas, thereโs a function called geocode(). This fuction can geocode a list of place names or addresses(string) and return a new form of addresses and point coordinates as a GeoDataFrame.
Geocode addresses using Nominatim service provider
To use OSM Nominatim, one must create a username to access the service. Click here to register an account to use Nominatim service.
Note: Remember to provide below information when using Nominatim service
the name of service provider in
provider. Ex: provider=โnominatimโname of user in
user_agentparameters. Ex: user_agent=โgeopy_osmโ(optional) the time of how many seconds we will wait for getting response from the service in
timeout. Ex: timeout=4
a. Geocoding from a name listยถ
Now letโs geocode different place name of boroughs in New York City using dataset from geopandas directory, and plot those locations along with the detailed borough boundary. Read more about this example at Geocoding.
[1]:
# Import the geocoding tool
import geopandas as gpd
from geopandas.tools import geocode
[2]:
# Import data from geopandas directory which was already stored in your computer
new_york = gpd.read_file(gpd.datasets.get_path("nybb"))
# Read the dataframe
new_york
[2]:
| BoroCode | BoroName | Shape_Leng | Shape_Area | geometry | |
|---|---|---|---|---|---|
| 0 | 5 | Staten Island | 330470.010332 | 1.623820e+09 | MULTIPOLYGON (((970217.022 145643.332, 970227.... |
| 1 | 4 | Queens | 896344.047763 | 3.045213e+09 | MULTIPOLYGON (((1029606.077 156073.814, 102957... |
| 2 | 3 | Brooklyn | 741080.523166 | 1.937479e+09 | MULTIPOLYGON (((1021176.479 151374.797, 102100... |
| 3 | 1 | Manhattan | 359299.096471 | 6.364715e+08 | MULTIPOLYGON (((981219.056 188655.316, 980940.... |
| 4 | 2 | Bronx | 464392.991824 | 1.186925e+09 | MULTIPOLYGON (((1012821.806 229228.265, 101278... |
[3]:
# Extract the name list from dataframe
boros = new_york.BoroName
boros
[3]:
0 Staten Island
1 Queens
2 Brooklyn
3 Manhattan
4 Bronx
Name: BoroName, dtype: object
With a list of borough names we created above, we can geocode these names using geopandas geocoding function called
geocode()
[4]:
# Geocode addresses using Nominatim. Here, I use "geopy_osm" username
geo = geocode(boros, provider='nominatim', user_agent='geopy_osm', timeout=4)
# Print out result
geo
[4]:
| geometry | address | |
|---|---|---|
| 0 | POINT (-74.14960 40.58346) | Staten Island, Richmond County, New York, Unit... |
| 1 | POINT (-73.82831 40.71351) | Queens, Queens County, New York, United States |
| 2 | POINT (-73.94972 40.65260) | Brooklyn, Kings County, New York, United States |
| 3 | POINT (-73.95989 40.78962) | Manhattan, New York County, New York, United S... |
| 4 | POINT (-73.87859 40.84665) | The Bronx, Bronx County, New York, United States |
As you can see, from the name of boroughs we can retrieve the geometry of each location as point objects and also addresses in a well-written format.
Now letโs plot these locations on New York city map.
[5]:
# Import plotting module
import matplotlib.pyplot as plt
Before plotting, we have to confirm that both location and area boundary has the same coordinate reference system
[6]:
# confirm crs
new_york.crs == geo.crs
[6]:
False
Okay, letโs matching its coordinate system
[7]:
# change crs
New_York = new_york.to_crs(geo.crs)
C:\Users\a9418\AppData\Roaming\Python\Python37\site-packages\pyproj\crs\crs.py:68: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
return _prepare_from_string(" ".join(pjargs))
[8]:
# Let's plot the borough locations on a map
ax = New_York.plot()
geo.plot(ax=ax, color='yellow')
plt.show();
b. Geocoding from address fileยถ
Here, we will geocode the addresses in New York state stored in a text file called address_random.txt.
The first 6 rows of data look like this:
ID; address
100; 141 Washington Ave Extension Albany NY 12205
101; 2055 Niagara Falls Blvd Amherst NY 14228
102; 297 Grant Avenue Auburn NY 13021
103; 4133 Veterans Memorial Drive Batavia NY 14020
104; 3191 County rd 10 Canandaigua NY 14424
[9]:
# First, import necessary modules
import pandas as pd
import geopandas as gpd
We can read the data of txt, csv, or xlsx into a Pandas DataFrame using the read_csv() -function:
[10]:
# determine file path
fp = 'data/addresses.txt'
# Read address file
data = pd.read_csv(fp, delimiter = ';')
[11]:
# Let's check the file
print('The total address is:',len(data))
data
The total address is: 23
[11]:
| id | addr | |
|---|---|---|
| 0 | 100 | Walmart Supercenter, 141, Washington Avenue E... |
| 1 | 101 | 2055, Niagara Falls Boulevard, Amherst, Erie ... |
| 2 | 102 | Walmart Supercenter, 297, Grant Avenue, City ... |
| 3 | 103 | Walmart Supercenter, 4133, Veterans Memorial ... |
| 4 | 104 | 3191, County Road 4, Town of Canandaigua, Ont... |
| 5 | 105 | 30, Broome Street, Catskill, Town of Catskill... |
| 6 | 106 | 161, Centereach Mall, Suffolk County, New Yor... |
| 7 | 108 | Citi Trends, 100, East Thruway Plaza Drive, T... |
| 8 | 109 | Walmart Supercenter, 5033, Transit Road, East... |
| 9 | 110 | Runnings, 3949, State Route 31, Town of Clay,... |
| 10 | 111 | Walmart Supercenter, 139, Merchant Place, Tow... |
| 11 | 112 | 279, Troy Road, Town of East Greenbush, Renss... |
| 12 | 114 | 25737 US 11 Evans Mills NY 13637 |
| 13 | 115 | 10401 Bennett Road Fredonia NY 14063 |
| 14 | 117 | 4300 Lakeville Road Geneseo NY 14454 |
| 15 | 118 | 200 Dutch Meadows Ln Glenville NY 12302 |
| 16 | 119 | 100 Elm Ridge Center Dr Greece NY 14626 |
| 17 | 120 | 1549 9 Halfmoon NY 12065 |
| 18 | 121 | 5360 Southwestern Blvd Hamburg NY 14075 |
| 19 | 123 | 2 Gannett Dr Johnson City NY 13790 |
| 20 | 124 | 350 E Fairmount Ave Lakewood NY 14750 |
| 21 | 125 | 4975 Transit Rd Lancaster NY 14086 |
| 22 | 126 | 579 Troy-Schenectady Road Latham NY 12110 |
[12]:
# Import the geocoding tool
from geopandas.tools import geocode
# Geocode addresses using Nominatim. Remember to provide a custom "application name" in the user_agent parameter!
geo_address = geocode(data.addr, provider='nominatim', user_agent='autogis_xx', timeout=4)
Great job! We now get a GeoDataFrame that contains geometry of Shapely Point -objects based on addresses. Surely, this dataframe can be exported to a Shapefile using the method from Session-2. However, the id column is missing here; hence, we need to join the information from data into our new dataframe geo_address by using Table Join.
c. Table joinยถ
In GIS analyses, table join is a procedure which combine data from different tables based on common key attribute. In Python, it can be done easily in Pandas/Geopandas using join(). In order to join two tables together, we need to make sure that the order and number of the records are the same in both DataFrame.
Now, we will use join() -function to merge data and geo_address together based on index (by default) as both DataFrame already have the same order and number of rows.
[13]:
join_df = geo_address.join(data)
join_df.head()
[13]:
| geometry | address | id | addr | |
|---|---|---|---|---|
| 0 | POINT (-73.84703 42.69495) | Walmart Supercenter, 141, Washington Avenue Ex... | 100 | Walmart Supercenter, 141, Washington Avenue E... |
| 1 | POINT (-78.82218 43.01100) | 2055, Niagara Falls Boulevard, Town of Amherst... | 101 | 2055, Niagara Falls Boulevard, Amherst, Erie ... |
| 2 | POINT (-76.54815 42.95406) | Walmart Supercenter, 297, Grant Avenue, City o... | 102 | Walmart Supercenter, 297, Grant Avenue, City ... |
| 3 | POINT (-78.20803 43.01360) | Walmart Supercenter, 4133, Veterans Memorial D... | 103 | Walmart Supercenter, 4133, Veterans Memorial ... |
| 4 | POINT (-77.24682 42.90172) | 3191, County Road 4, Town of Canandaigua, Onta... | 104 | 3191, County Road 4, Town of Canandaigua, Ont... |
Letโs check the type of
join_dftable
[14]:
print(type(join_df))
print(join_df.crs)
<class 'geopandas.geodataframe.GeoDataFrame'>
{'init': 'epsg:4326', 'no_defs': True}
As a result, we have a new GeoDataFrame called join_df where we have both original columns plus a new column for geometry. So now, it is easy to save it as a Shapefile to our result directory.
[15]:
# output file path
outfp = 'result/addresses.shp'
# save to Shapefile
join_df.to_file(outfp)
Finally, we have sucessfully geocoded the addresses into Points and made a Shapefile. Letโs go to Shapefile and open it in QGIS.
Plotting those addresses on New York State boundary
Here, we will make a plot of those addresses on New York State boundary so as to visualize where they are located exactly on a map.
First, letโs import New York State boundary into Python.
[16]:
# Set filepath
fp = "data/NY_counties_shoreline.geojson"
# Read file using gpd.read_file()
ny_state = gpd.read_file(fp)
[17]:
geo_address
[17]:
| geometry | address | |
|---|---|---|
| 0 | POINT (-73.84703 42.69495) | Walmart Supercenter, 141, Washington Avenue Ex... |
| 1 | POINT (-78.82218 43.01100) | 2055, Niagara Falls Boulevard, Town of Amherst... |
| 2 | POINT (-76.54815 42.95406) | Walmart Supercenter, 297, Grant Avenue, City o... |
| 3 | POINT (-78.20803 43.01360) | Walmart Supercenter, 4133, Veterans Memorial D... |
| 4 | POINT (-77.24682 42.90172) | 3191, County Road 4, Town of Canandaigua, Onta... |
| 5 | POINT (-73.87106 42.21629) | 30, Broome Street, Catskill, Town of Catskill,... |
| 6 | POINT (-73.08255 40.85993) | 161, Centereach Mall, Suffolk County, New York... |
| 7 | POINT (-78.77824 42.90475) | Citi Trends, 100, East Thruway Plaza Drive, Th... |
| 8 | POINT (-78.69387 42.98329) | Walmart Supercenter, 5033, Transit Road, Easte... |
| 9 | POINT (-76.24021 43.18815) | Runnings, 3949, State Route 31, Town of Clay, ... |
| 10 | POINT (-74.45542 42.68246) | Walmart Supercenter, 139, Merchant Place, Town... |
| 11 | POINT (-73.69970 42.64295) | KeyBank, 279, Troy Road, Town of East Greenbus... |
| 12 | POINT (-75.82170 44.07066) | US 11, Calcium, Le Ray, Jefferson County, New ... |
| 13 | POINT (-79.31335 42.45387) | Walmart Supercenter, 10401, Bennett Road, Fred... |
| 14 | POINT (-77.78476 42.79901) | 4300, Lakeville Road, Village of Geneseo, Town... |
| 15 | POINT (-73.94423 42.84172) | 200, Dutch Meadows Lane, Town of Glenville, Sc... |
| 16 | POINT (-77.73073 43.21536) | 100, Elm Ridge Center Drive, Elm Ridge Center,... |
| 17 | POINT (-73.73709 42.84462) | Halfmoon, Town of Halfmoon, Saratoga County, N... |
| 18 | POINT (-78.87170 42.74320) | Walmart Supercenter, 5360, Southwestern Boulev... |
| 19 | POINT (-75.94702 42.11535) | Walmart Supercenter, 2, Gannett Drive, Village... |
| 20 | POINT (-79.29999 42.09681) | Walmart Supercenter, 350, East Fairmount Avenu... |
| 21 | POINT (-78.69682 42.88252) | 4975, Transit Road, Town of Lancaster, Erie Co... |
| 22 | POINT (-73.76341 42.75302) | 579, Troy Schenectady Road, Latham, Town of Co... |
[18]:
# Matching the coordinate system of the boundary and addresses
NY_state = ny_state.to_crs(geo_address.crs)
C:\Users\a9418\AppData\Roaming\Python\Python37\site-packages\pyproj\crs\crs.py:68: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
return _prepare_from_string(" ".join(pjargs))
[19]:

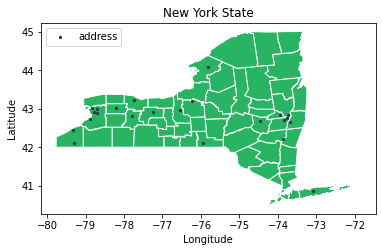

# Let's plot the locations on a map
ax = NY_state.plot(facecolor='#28B463', edgecolor='white')
geo_address.plot(ax=ax, color='#283747', markersize = 5, label = 'address')
# Customize the plot
plt.title('New York State')
plt.xlabel('Longitude')
plt.ylabel('Latitude')
plt.legend(loc=2) # 2 is for 'upper left'
plt.savefig('result/addresses in New York.png', dpi = 150)
plt.show();
d. Point in Polygonยถ
How can we check if point is inside or outside a polygon?
Finding out if a certain point is located inside or outside of an area is a basic geospatial operations (e.g to select data based on location). As in our case, we want to select all data points or addresses in the West zone of New York state.
There are two basic ways of conducting Point in Polygon using Shapely: 1. use .within(), a function for checking if a point is within a polygon 2. use .contains(), a fuction for checking if a polygon contains a point
Read more about other operation functions such as intersect, touches, etc in Shapely Documentation.
Spatial query
Fundamentally, spatial queries are typical first step of workflow in spatial analysis. Letโs start by extract the West zone of New York State boundary that we imported earlier.
[20]:
# Recall New York state boundary
NY_state.head()
[20]:
| NAME | ABBREV | GNIS_ID | FIPS_CODE | SWIS | NYSP_ZONE | POP1990 | POP2000 | POP2010 | POP2020 | DOS_LL | DOSLL_DATE | NYC | CALC_SQ_MI | DATEMOD | Shape_Leng | Shape_Area | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Albany | ALBA | 974099 | 36001 | 010000 | East | 292594 | 294565 | 304204 | 0 | None | None | N | 532.791779 | 2017-11-10 | 166077.834242 | 1.379924e+09 | MULTIPOLYGON (((-73.67694 42.78341, -73.67728 ... |
| 1 | Allegany | ALLE | 974100 | 36003 | 020000 | West | 50470 | 49927 | 48946 | 0 | None | None | N | 1035.209131 | 2019-04-26 | 210499.339279 | 2.681179e+09 | MULTIPOLYGON (((-78.04115 42.52082, -78.04115 ... |
| 2 | Bronx | BRON | 974101 | 36005 | 600000 | Long Island | 1203789 | 1332650 | 1385108 | 0 | None | None | Y | 42.313958 | 2019-10-04 | 110631.250768 | 1.095926e+08 | MULTIPOLYGON (((-73.89688 40.79617, -73.89757 ... |
| 3 | Broome | BROO | 974102 | 36007 | 030000 | Central | 212160 | 200536 | 200600 | 0 | None | None | N | 715.287465 | 2019-04-26 | 227933.332021 | 1.852586e+09 | MULTIPOLYGON (((-75.41849 42.19502, -75.41858 ... |
| 4 | Cattaraugus | CATT | 974103 | 36009 | 040000 | West | 84234 | 83955 | 80317 | 0 | None | None | N | 1324.309219 | 2019-04-26 | 276084.505560 | 3.429945e+09 | MULTIPOLYGON (((-78.46390 42.53635, -78.46388 ... |
From the geodataframe, there are several columns, in which the column ['NYSP_ZONE'] contains information about the zone class that each county is categorized. Thus, from this column, we will select all counties that belongs to West zone.
The query for West zone can be done as follows:
[21]:
# Spatial query
west_ny = NY_state.loc[NY_state['NYSP_ZONE'] == 'West']
# Reset the index after query
west_ny.reset_index(drop=True, inplace=True)
west_ny.head()
[21]:
| NAME | ABBREV | GNIS_ID | FIPS_CODE | SWIS | NYSP_ZONE | POP1990 | POP2000 | POP2010 | POP2020 | DOS_LL | DOSLL_DATE | NYC | CALC_SQ_MI | DATEMOD | Shape_Leng | Shape_Area | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Allegany | ALLE | 974100 | 36003 | 020000 | West | 50470 | 49927 | 48946 | 0 | None | None | N | 1035.209131 | 2019-04-26 | 210499.339279 | 2.681179e+09 | MULTIPOLYGON (((-78.04115 42.52082, -78.04115 ... |
| 1 | Cattaraugus | CATT | 974103 | 36009 | 040000 | West | 84234 | 83955 | 80317 | 0 | None | None | N | 1324.309219 | 2019-04-26 | 276084.505560 | 3.429945e+09 | MULTIPOLYGON (((-78.46390 42.53635, -78.46388 ... |
| 2 | Chautauqua | CHAU | 974105 | 36013 | 060000 | West | 141895 | 139750 | 134905 | 0 | None | None | N | 1087.279177 | 2019-04-26 | 231568.884528 | 2.816040e+09 | MULTIPOLYGON (((-79.06072 42.53784, -79.06071 ... |
| 3 | Erie | ERIE | 974113 | 36029 | 140000 | West | 968532 | 950265 | 919040 | 0 | None | None | N | 1048.159552 | 2017-10-30 | 366827.189729 | 2.714721e+09 | MULTIPOLYGON (((-78.90772 42.93463, -78.90302 ... |
| 4 | Genesee | GENE | 974117 | 36037 | 180000 | West | 60060 | 60370 | 60079 | 0 | None | None | N | 496.057048 | 2018-02-12 | 155397.082626 | 1.284782e+09 | MULTIPOLYGON (((-77.99726 43.13297, -77.99695 ... |

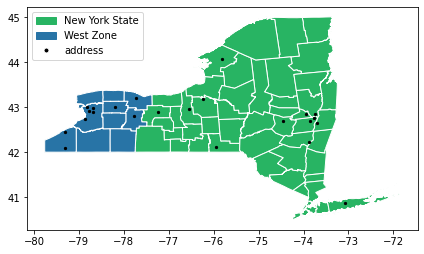

Letโs create a map which shows the location of the selected zone and the address points on top of the map:
Read more about how to plot with legend: https://matplotlib.org/stable/gallery/text_labels_and_annotations/custom_legends.html
[22]:
import matplotlib.pyplot as plt
from matplotlib.patches import Patch
from matplotlib.lines import Line2D
# Create a figure with one subplot
fig, ax = plt.subplots()
# Plot boundary
NY_state.plot(ax=ax, facecolor='#28B463', edgecolor = 'white')
west_ny['geometry'].plot(ax=ax, facecolor='#2874A6', edgecolor = 'white')
# Plot address points
geo_address.plot(ax=ax, color='black', markersize=5)
# Add legend
plt.legend(loc=2, handles=[Patch(color='#28B463', label='New York State'),
Patch(color='#2874A6', label='West Zone'),
Line2D([0], [0], marker='o', color='w', label='address',
markerfacecolor='black', markersize=5)])
plt.tight_layout()
Clearly, there are certain points within the blue Polygon. Letโs conduct further query to get those points out by using within().
But, first within() only works with one polygon -object. It is not possible to use many polygons for query. Since, in the West zone there are many polygons of county, we should dissolve all polygons into one polygon. It can be done by using function dissolve() from geopandas based on common ID or name.
Read more about dissolve()
Dissolve polygons
Letโs see how we can dissolve those polygons into one:
[23]:
# dissolve polygon based on zone
polygon = west_ny.dissolve(by='NYSP_ZONE')
polygon.plot()
[23]:
<AxesSubplot:>
[24]:
polygon
[24]:
| geometry | NAME | ABBREV | GNIS_ID | FIPS_CODE | SWIS | POP1990 | POP2000 | POP2010 | POP2020 | DOS_LL | DOSLL_DATE | NYC | CALC_SQ_MI | DATEMOD | Shape_Leng | Shape_Area | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NYSP_ZONE | |||||||||||||||||
| West | MULTIPOLYGON (((-78.90772 42.93463, -78.90302 ... | Allegany | ALLE | 974100 | 36003 | 020000 | 50470 | 49927 | 48946 | 0 | None | None | N | 1035.209131 | 2019-04-26 | 210499.339279 | 2.681179e+09 |
Conduct point in polygon
Now letโs conduct query:
If there are too many points for query, we should enable shapely.speedups to make some queries running faster.
[25]:
import shapely.speedups
shapely.speedups.enable()
Here, we use the
.loc['West', 'geometry']to parse the actualy Polygon geometry object from thepolygonGeoDataFrame.
[26]:
query = geo_address.within(polygon.loc['West', 'geometry'])
print(query)
0 False
1 True
2 False
3 True
4 False
5 False
6 False
7 True
8 True
9 False
10 False
11 False
12 False
13 True
14 True
15 False
16 True
17 False
18 True
19 False
20 True
21 True
22 False
dtype: bool
As a result, we get an array of boolean values for each rows. From this array, True means Point is inside the Polygon, while False means it was not.
From this query array, we can select points of address that are inside the West zone polygon by using .loc[]-function of Pandas.
[27]:
# let's extract points in polygon (pip)
pip_data = geo_address.loc[query==True]
pip_data
[27]:
| geometry | address | |
|---|---|---|
| 1 | POINT (-78.82218 43.01100) | 2055, Niagara Falls Boulevard, Town of Amherst... |
| 3 | POINT (-78.20803 43.01360) | Walmart Supercenter, 4133, Veterans Memorial D... |
| 7 | POINT (-78.77824 42.90475) | Citi Trends, 100, East Thruway Plaza Drive, Th... |
| 8 | POINT (-78.69387 42.98329) | Walmart Supercenter, 5033, Transit Road, Easte... |
| 13 | POINT (-79.31335 42.45387) | Walmart Supercenter, 10401, Bennett Road, Fred... |
| 14 | POINT (-77.78476 42.79901) | 4300, Lakeville Road, Village of Geneseo, Town... |
| 16 | POINT (-77.73073 43.21536) | 100, Elm Ridge Center Drive, Elm Ridge Center,... |
| 18 | POINT (-78.87170 42.74320) | Walmart Supercenter, 5360, Southwestern Boulev... |
| 20 | POINT (-79.29999 42.09681) | Walmart Supercenter, 350, East Fairmount Avenu... |
| 21 | POINT (-78.69682 42.88252) | 4975, Transit Road, Town of Lancaster, Erie Co... |
Finally, we can get the result of all points inside the West zone of New York state.
[28]:
# Let's also select the points outside the polygon (pop)
pop_data = geo_address.loc[query==False]
Plotting result
[29]:
import matplotlib.pyplot as plt
from matplotlib.patches import Patch
from matplotlib.lines import Line2D
# Create a figure with one subplot
fig, ax = plt.subplots(figsize=(7,8))
# Plot boundary
NY_state.plot(ax=ax, facecolor='#28B463', edgecolor = 'white')
west_ny['geometry'].plot(ax=ax, facecolor='#2874A6', edgecolor = 'white')
# Plot address points
pip_data.plot(ax=ax, color='red', markersize=5)
pop_data.plot(ax=ax, color='black', markersize=5)
# Add legend
plt.legend(loc=2, handles=[Patch(color='#28B463', label='New York State'),
Patch(color='#2874A6', label='West Zone'),
Line2D([0], [0], marker='o', color='w', label='address inside West Zone',
markerfacecolor='red', markersize=5),
Line2D([0], [0], marker='o', color='w', label='address outside West Zone',
markerfacecolor='black', markersize=5)])
plt.tight_layout()

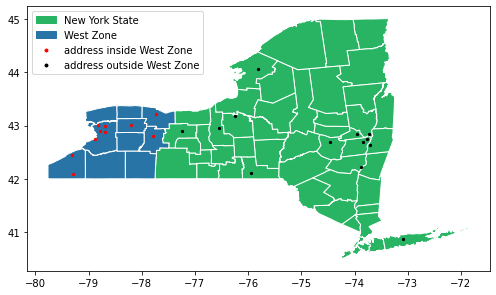

Perfect! Now we have a perfect plot showing the addresses inside (red) and outside the West zone (black), which is exactly what we wanted!
2. Nearest Neighbour Analysisยถ
To conduct nearest neighbour analysis in Python, we will use a shapely fuction called nearest_point(). This fuction will return a tuple of the nearest points in the input geometries and also in the same order as the input geometries.
a. Nearest point with Shapelyยถ
By using nearest_point() -function, letโs find the nearest destination from a group of destination point to the origin point.
[30]:
from shapely.geometry import Point, MultiPoint
from shapely.ops import nearest_points
origin = Point(1.5, 1.3)
dest1, dest2, dest3 = Point(1, 2), Point(0.5, 1), Point(3, 0.542)
To be able to find out the closest destination point from the origin, we need to create a MultiPoint object from the destination points.
[31]:
destinations = MultiPoint([dest1, dest2, dest3])
print(destinations)
MULTIPOINT (1 2, 0.5 1, 3 0.542)
So now we can see that all the destination points are represented as a single MultiPoint object. Letโs apply nearest_point() to find the nearest destination.
[32]:
nearest_geoms = nearest_points(origin, destinations)
# Set the origin point
near_pt_1 = nearest_geoms[0]
# Set the nearest point
near_pt_2 = nearest_geoms[1]
print(nearest_geoms)
print(near_pt_1)
print(near_pt_2)
(<shapely.geometry.point.Point object at 0x000001E5F9908388>, <shapely.geometry.point.Point object at 0x000001E5F99080C8>)
POINT (1.5 1.3)
POINT (1 2)
This is the basic of how to apply nearest_point() to calculate the nearest point in a pair of geometries (origin and destination). As you can see, it returns a shapely point with tuples where the first point is our origin point, and second point is the nearest point that we have found. Even though, we can get a good result here, but it is not useful enough for practical work. Therefore, the next section, we will learn how to make it more practical.
b. Nearest point with Geopandasยถ
In this section, we learn how to find the nearest points from a set of origin points to a set of destination points using GeoDataFrames. Letโs go back to our question: we want to find the nearest supermarkets to the centroid of each NUTS region. Thus, we will use the NUTS boundary data from the Office for National Statistics of UK and point locations of all supermarkets in United Kingdom.
Dataset:
NUTS boundary:
data/NUTS_level_1_(Jan_2018)_boundaries.shpLocation of supermarket:
data/Location_of_supermarket_in_Britain.shp
[33]:
import geopandas as gpd
from shapely.ops import nearest_points
[34]:
# Filepath of NUTS boundary
fp1 = 'data/NUTS_level_1_(Jan_2018)_boundaries.shp'
fp2 = 'data/Location_of_supermarket_in_Britain.shp'
# Read dataframe
df1 = gpd.read_file(fp1)
df2 = gpd.read_file(fp2)
[35]:
# Check dataframe of boundary
df1.head()
[35]:
| objectid | nuts118cd | nuts118nm | bng_e | bng_n | long | lat | st_areasha | st_lengths | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1 | UKC | North East (England) | 417313 | 600358 | -1.72890 | 55.297031 | 8.592429e+09 | 1.008435e+06 | MULTIPOLYGON (((398583.804 653093.703, 398566.... |
| 1 | 2 | UKD | North West (England) | 350015 | 506280 | -2.77237 | 54.449451 | 1.416409e+10 | 2.075324e+06 | MULTIPOLYGON (((357067.497 586765.599, 357029.... |
| 2 | 3 | UKE | Yorkshire and The Humber | 446903 | 448736 | -1.28712 | 53.932640 | 1.540912e+10 | 1.385386e+06 | MULTIPOLYGON (((478300.699 518863.096, 478309.... |
| 3 | 4 | UKF | East Midlands (England) | 477660 | 322635 | -0.84967 | 52.795719 | 1.564327e+10 | 1.332317e+06 | MULTIPOLYGON (((512572.598 414469.499, 512619.... |
| 4 | 5 | UKG | West Midlands (England) | 386294 | 295477 | -2.20358 | 52.556969 | 1.300374e+10 | 9.539014e+05 | POLYGON ((402840.498 368845.598, 402862.397 36... |
[36]:
# Create centroid of each NUTS region
df1['centroid'] = df1.centroid
df1.head(2)
[36]:
| objectid | nuts118cd | nuts118nm | bng_e | bng_n | long | lat | st_areasha | st_lengths | geometry | centroid | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1 | UKC | North East (England) | 417313 | 600358 | -1.72890 | 55.297031 | 8.592429e+09 | 1.008435e+06 | MULTIPOLYGON (((398583.804 653093.703, 398566.... | POINT (406274.318 569213.337) |
| 1 | 2 | UKD | North West (England) | 350015 | 506280 | -2.77237 | 54.449451 | 1.416409e+10 | 2.075324e+06 | MULTIPOLYGON (((357067.497 586765.599, 357029.... | POINT (353041.284 461726.493) |
[37]:
# Check dataframe of supermarket
df2
[37]:
| SID | LON | LAT | NAME | SUPERMARKE | geometry | |
|---|---|---|---|---|---|---|
| 0 | 1.0 | -3.18056 | 55.93667 | EDINBURGH CAUSEWAYSIDE EXPRESS | Tesco | POINT (326258.542 672064.843) |
| 1 | 2.0 | -3.18358 | 55.94493 | EDINBURGH METRO | Tesco | POINT (326085.646 672987.227) |
| 2 | 3.0 | -3.20518 | 55.94444 | EDINBURGH EARL GREY STREET EXPRESS | Tesco | POINT (324735.853 672956.000) |
| 3 | 4.0 | -3.21140 | 55.93440 | EDINBURGH BRUNTSFIELD METRO | Tesco | POINT (324327.860 671845.556) |
| 4 | 5.0 | -3.18014 | 55.96144 | EDINBURGH LEITH WALK EXPRESS | Tesco | POINT (326331.821 674820.767) |
| ... | ... | ... | ... | ... | ... | ... |
| 2592 | 2593.0 | -5.06851 | 50.26167 | Sainsbury's Truro | Sainsburys | POINT (181321.563 44685.173) |
| 2593 | 2594.0 | -3.18850 | 55.65400 | Sainsbury's Peebles | Sainsburys | POINT (325222.928 640618.997) |
| 2594 | 2595.0 | -3.19300 | 55.65700 | Tesco's Peebles | Tesco | POINT (324945.555 640957.675) |
| 2595 | 2596.0 | -4.61500 | 55.48700 | Sainsbury's Ayr | Sainsburys | POINT (234788.209 624502.248) |
| 2596 | 2597.0 | -1.73900 | 55.05000 | Sainsbury's Ponteland | Sainsburys | POINT (416673.661 572798.737) |
2597 rows ร 6 columns
So far, we have imported the data of boundary and supermarket locations as dataframes. As you can see, there are 2,597 supermarkets in UK. However, we donโt know which ones are the nearest supermarkets to the centroid of each NUTS region. To get more understanding about location data, letโs visualize them in a plot by using matplotlib.
[38]:
# import matplotlib module
import matplotlib.pyplot as plt
# Make subplots that are next to each other
fig, ax = plt.subplots(figsize=(8, 8))
# Data to plot
df1.plot(ax=ax, column='nuts118nm') # nuts boundary
df2.plot(ax=ax, markersize=0.2, color='yellow') # location of supermarkets
df1.centroid.plot(ax=ax, color= 'black', markersize=3) # centroid of nuts boundary
# set plotting frame
plt.xlim(-300000, 1000000)
plt.show();

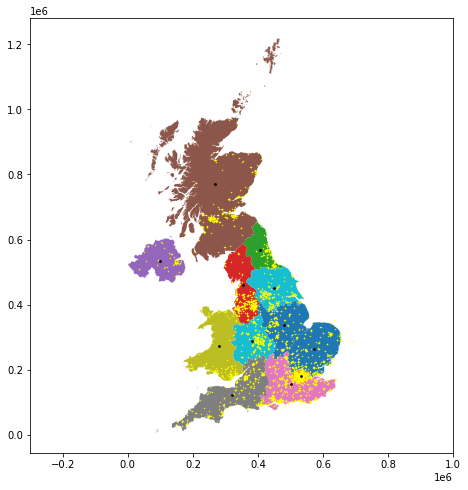

Now we can see where those supermarkets located in the map. Thus, letโs start finding the nearest supermarkets step by step.
[39]:
# Create a union polygon (make all polygons into one)
df2_union = df2['geometry'].unary_union
print(type(df2_union))
df2_union
<class 'shapely.geometry.multipoint.MultiPoint'>
[39]:
[40]:
# Find the nearest supermarket to the North East nuts region.
nearest = nearest_points(df1['centroid'][0], df2_union)[1]
[41]:
# Get the information row of the nearest supermarket
row_df2 = df2[df2['geometry'] == nearest]
row_df2
[41]:
| SID | LON | LAT | NAME | SUPERMARKE | geometry | |
|---|---|---|---|---|---|---|
| 2596 | 2597.0 | -1.739 | 55.05 | Sainsbury's Ponteland | Sainsburys | POINT (416673.661 572798.737) |
Write a loop to calculate nearest point
[42]:
# Create an empty pandas dataframe
nearest_pt = pd.DataFrame()
for i in range(len(df1)):
# Find the nearest supermarket to the North East nuts region.
nearest = nearest_points(df1['centroid'][i], df2_union)[1]
# Get the information row of the nearest supermarket
row_df2 = df2[df2['geometry'] == nearest]
# Write each result in pandas dataframe
nearest_pt = nearest_pt.append(row_df2)
nearest_pt
[42]:
| SID | LON | LAT | NAME | SUPERMARKE | geometry | |
|---|---|---|---|---|---|---|
| 2596 | 2597.0 | -1.73900 | 55.05000 | Sainsbury's Ponteland | Sainsburys | POINT (416673.661 572798.737) |
| 2103 | 2104.0 | -2.82195 | 54.05636 | Lancaster | Asda | POINT (346199.257 462525.885) |
| 1713 | 1714.0 | -1.12682 | 53.95412 | Morrisons - Acomb - Font Street - Acomb - No... | Morrisons | POINT (457294.177 451192.090) |
| 531 | 532.0 | -0.66635 | 52.91421 | GRANTHAM EXPRESS | Tesco | POINT (489669.615 335991.122) |
| 592 | 593.0 | -2.23261 | 52.42122 | COOKLEY EXPRESS | Tesco | POINT (384182.799 280350.450) |
| 766 | 767.0 | 0.39757 | 52.26007 | NEWMARKET | Tesco | POINT (563613.794 265109.619) |
| 1204 | 1205.0 | -0.09999 | 51.49448 | ELEPHANT AND CASTLE METRO | Tesco | POINT (531884.737 178970.946) |
| 1967 | 1968.0 | -0.56702 | 51.31692 | Morrisons - Woking - 82 Goldsworth Road - Wok... | Morrisons | POINT (499854.725 158489.166) |
| 1334 | 1335.0 | -3.12131 | 51.00524 | TAUNTON GALMINGTON EXPRESS | Tesco | POINT (321334.410 123454.491) |
| 1850 | 1851.0 | -4.06733 | 52.40563 | Morrisons - Aberystwyth - Parc Y Dolai - Llan... | Morrisons | POINT (259382.146 280601.507) |
| 99 | 100.0 | -3.82943 | 57.19116 | AVIEMORE METRO | Tesco | POINT (289453.027 812541.912) |
| 2141 | 2142.0 | -6.74608 | 54.63502 | Cookstown Northern Ireland | Asda | POINT (93790.920 536946.043) |
Write a function to calculate nearest point
[43]:
# Definie a function to find nearest points and return the output from spcified column
def gpd_nearest(row, target, origin_geo='geometry', output_column=None):
# Create a destination geometry by making union polygon
destination_geo = target['geometry'].unary_union
# Find the geometry that is closest
nearest = nearest_points(row[origin_geo], destination_geo)[1]
# Get the row corresponding to the nearest destination
row_target = target[target['geometry'] == nearest]
# Get the value from destination based on provided column name
output = row_target[output_column].values
return output
[44]:
# Apply function to the dataframe
df1["nearest_loc"] = df1.apply(gpd_nearest, target=df2, origin_geo="centroid", output_column= "SID", axis=1)
df1.head()
[44]:
| objectid | nuts118cd | nuts118nm | bng_e | bng_n | long | lat | st_areasha | st_lengths | geometry | centroid | nearest_loc | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 1 | UKC | North East (England) | 417313 | 600358 | -1.72890 | 55.297031 | 8.592429e+09 | 1.008435e+06 | MULTIPOLYGON (((398583.804 653093.703, 398566.... | POINT (406274.318 569213.337) | [2597.0] |
| 1 | 2 | UKD | North West (England) | 350015 | 506280 | -2.77237 | 54.449451 | 1.416409e+10 | 2.075324e+06 | MULTIPOLYGON (((357067.497 586765.599, 357029.... | POINT (353041.284 461726.493) | [2104.0] |
| 2 | 3 | UKE | Yorkshire and The Humber | 446903 | 448736 | -1.28712 | 53.932640 | 1.540912e+10 | 1.385386e+06 | MULTIPOLYGON (((478300.699 518863.096, 478309.... | POINT (450735.172 452358.014) | [1714.0] |
| 3 | 4 | UKF | East Midlands (England) | 477660 | 322635 | -0.84967 | 52.795719 | 1.564327e+10 | 1.332317e+06 | MULTIPOLYGON (((512572.598 414469.499, 512619.... | POINT (480316.348 337075.435) | [532.0] |
| 4 | 5 | UKG | West Midlands (England) | 386294 | 295477 | -2.20358 | 52.556969 | 1.300374e+10 | 9.539014e+05 | POLYGON ((402840.498 368845.598, 402862.397 36... | POINT (381687.482 286831.267) | [593.0] |
Trรจs bon! By using few different methods, we can finally find the nearest supermarkets to the centroid of each NUTS region in the UK.
