Session 4: Geometric operation and Data classification

Written by Men Vuthy, 2021

---

Overview:

In this session, we are going to learn about operating geometric functions (i.e. intersection, symetrical difference, union, and difference) and how to classify the data based on specific criteria and map classifiers. These operations are very common in GIS; however, here we will do it Python programming language. It is important to know how it can be done since it will help you deal with large amount of data or big-data.

After this session, you will understand how to:

• conduct overlay analysis such as clipping or intersection, union, difference, etc

• conduct a loop operation of overlay analysis

• aggregate the geometries

• classify data features based on standard classification methods

• create custom classifier for data feature classification

Downloading dataset

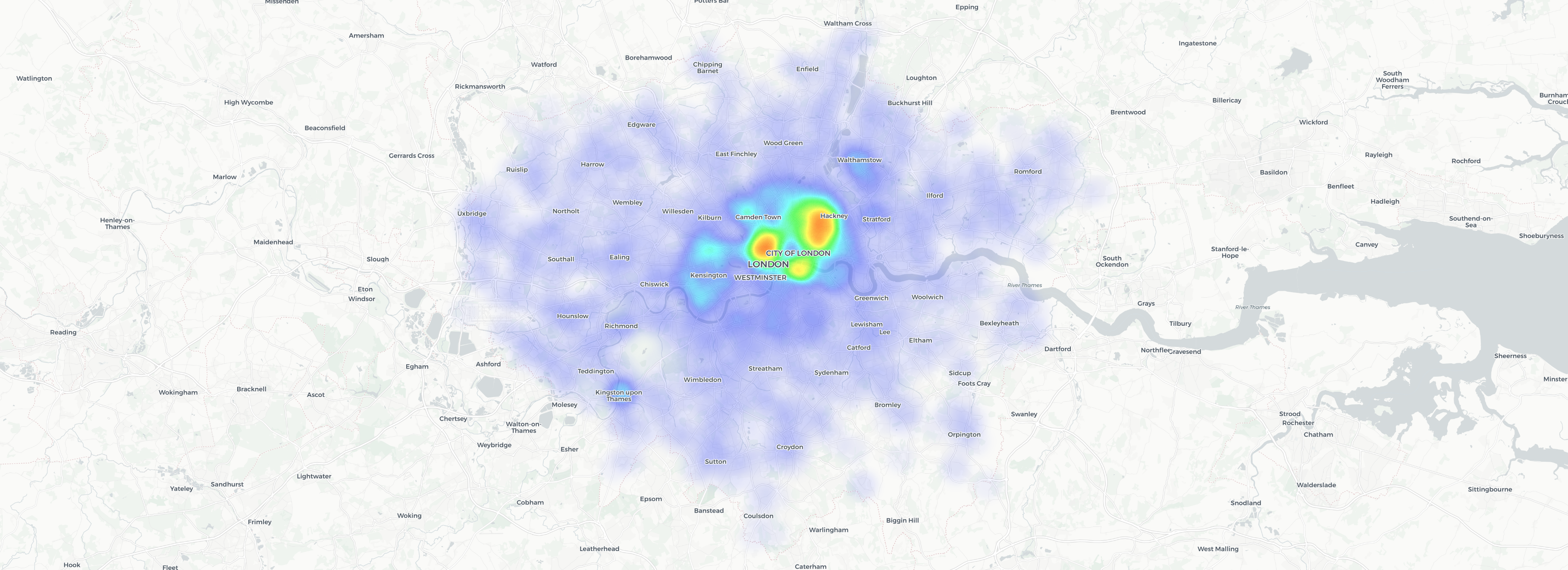

The data used in this lesson is retrieved from the book titled “Hands-On Data Visualization”. The data shows the location of bicycle theft in London reported by the Metropolitan Police Service. Visualize the interactive map of bicycle theft here. The data source is given as a list of coordinates (lat and lon) of location where the bicycles were stolen in a csv file format. Thus, to conduct geometric operation, we need to convert these coordinates into a GeoDataFrame with an appropriate coordinate reference system.

• Bicycle theft in London in January-July 2020

1. Geometry operation

a. Spatial overlay analysis

Geometric operation such as interection, union or difference is usually known as overlay analysis. The overlay analysis is one of the spatial GIS operations which aims at creating a new layer based on the overlaying shapes of two geometries and on the attribute information. In other words, it allows you to identify the relationships between two polygon features that share all or part of the same area.

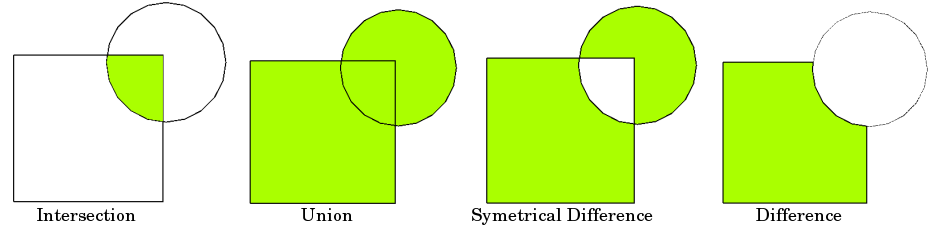

Typical overlay operations are:

Source: Vector Spatial Analysis - QGIS

Let’s get started to work on practial examples.

From now, we will learn how to conduct overlay operations on our data of bicycle theft in London. The question is “How many and where the bicycle theft in the southern area of Thames river in London?”

# import necessary module
import geopandas as gpd
import matplotlib.pyplot as plt
import shapely.speedups
%matplotlib inline

# Let's enable speedups to make queries faster
shapely.speedups.enable()

Let’s first read the border data and see how it looks:

# Set file paths
border_fp = "data/greater_london_const_region.shp"
south_river_fp = "data/south-area.shp"

# Read files
border = gpd.read_file(border_fp)
south_river = gpd.read_file(south_river_fp)

# Plot the layers
ax = border.plot(facecolor='#28B463', edgecolor='white')
south_river.plot(ax=ax, facecolor='None', edgecolor='blue')

plt.show()

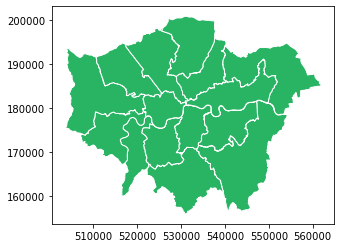

The green area is London city which we want to use for conducting overlay analysis, while the blue polygon is the boundary of the southern area of Thames river.

We will clip the green area within the blue polygon by using a function called overlay() from geopandas. This function takes few inputs such as:

1. geometries data (i.e. the data we want to clip or make difference)

2. boundary geometries (i.e. area for clipping or making difference)

3. type of overlay operation: how (i.e. how=intersection, how=difference, how=union and how=symmetric_difference)

Before conducting overlay operation, it is better to check whether or not the coordinate systems of each data are consistent. It will result in an error if their crs are not the same.

# Ensure that the CRS matches, if not raise an AssertionError
assert border.crs == south_river.crs, "CRS are not the same between layers!"

Now, it can be sure that both data have the same crs. Thus, we can start the overlay analysis.

Intersection

intersection = gpd.overlay(border, south_river, how='intersection')

intersection.head()

	NAME	AREA_CODE	DESCRIPTIO	FILE_NAME	NUMBER	NUMBER0	POLYGON_ID	UNIT_ID	CODE	HECTARES	AREA	TYPE_CODE	DESCRIPT0	TYPE_COD0	DESCRIPT1	id	Name	geometry
0	Havering and Redbridge GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	1	1	112074	41452	E32000009	17089.120	215.025	VA	CIVIL VOTING AREA	None	None	1	South Thames River	MULTIPOLYGON (((552057.328 178434.366, 552047....
1	Croydon and Sutton GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	2	2	112056	41443	E32000005	13033.641	0.000	VA	CIVIL VOTING AREA	None	None	1	South Thames River	POLYGON ((531409.308 171042.621, 531439.333 17...
2	Bexley and Bromley GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	3	3	112066	41448	E32000002	21444.820	373.731	VA	CIVIL VOTING AREA	None	None	1	South Thames River	POLYGON ((549944.025 181074.392, 549992.231 18...
3	South West GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	4	4	112076	41453	E32000013	15259.573	198.064	VA	CIVIL VOTING AREA	None	None	1	South Thames River	MULTIPOLYGON (((522034.141 178039.708, 522044....
4	Lambeth and Southwark GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	8	8	112062	41446	E32000010	5716.068	147.597	VA	CIVIL VOTING AREA	None	None	1	South Thames River	POLYGON ((535280.948 177955.306, 535280.821 17...

• Let’s plot our data and see what we have:

intersection.plot(facecolor='#28B463', edgecolor='white');

Difference

difference = gpd.overlay(border, south_river, how='difference')

difference.head()

	NAME	AREA_CODE	DESCRIPTIO	FILE_NAME	NUMBER	NUMBER0	POLYGON_ID	UNIT_ID	CODE	HECTARES	AREA	TYPE_CODE	DESCRIPT0	TYPE_COD0	DESCRIPT1	geometry
0	Havering and Redbridge GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	1	1	112074	41452	E32000009	17089.120	215.025	VA	CIVIL VOTING AREA	None	None	POLYGON ((551329.848 179223.210, 551325.201 17...
2	Bexley and Bromley GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	3	3	112066	41448	E32000002	21444.820	373.731	VA	CIVIL VOTING AREA	None	None	MULTIPOLYGON (((553318.724 178598.531, 553382....
3	South West GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	4	4	112076	41453	E32000013	15259.573	198.064	VA	CIVIL VOTING AREA	None	None	MULTIPOLYGON (((523299.645 177410.580, 523300....
4	Ealing and Hillingdon GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	5	5	112054	41442	E32000006	17124.643	0.000	VA	CIVIL VOTING AREA	None	None	POLYGON ((504288.900 193543.098, 504292.998 19...
5	Brent and Harrow GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	6	6	112060	41445	E32000003	9370.064	0.000	VA	CIVIL VOTING AREA	None	None	POLYGON ((517376.114 194089.315, 517378.181 19...

• Let’s plot our data and see what we have:

difference.plot(facecolor='#28B463', edgecolor='white');

Union

union = gpd.overlay(intersection, difference, how='union')

union.head()

	NAME_1	AREA_CODE_1	DESCRIPTIO_1	FILE_NAME_1	NUMBER_1	NUMBER0_1	POLYGON_ID_1	UNIT_ID_1	CODE_1	HECTARES_1	...	POLYGON_ID_2	UNIT_ID_2	CODE_2	HECTARES_2	AREA_2	TYPE_CODE_2	DESCRIPT0_2	TYPE_COD0_2	DESCRIPT1_2	geometry
0	Havering and Redbridge GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	1.0	1.0	112074.0	41452.0	E32000009	17089.120	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	MULTIPOLYGON (((552057.328 178434.366, 552047....
1	Croydon and Sutton GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	2.0	2.0	112056.0	41443.0	E32000005	13033.641	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	POLYGON ((531409.308 171042.621, 531439.333 17...
2	Bexley and Bromley GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	3.0	3.0	112066.0	41448.0	E32000002	21444.820	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	POLYGON ((549944.025 181074.392, 549992.231 18...
3	South West GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	4.0	4.0	112076.0	41453.0	E32000013	15259.573	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	MULTIPOLYGON (((522034.141 178039.708, 522044....
4	Lambeth and Southwark GL Assembly Const	LAC	Greater London Authority Assembly Constituency	GREATER_LONDON_AUTHORITY	8.0	8.0	112062.0	41446.0	E32000010	5716.068	...	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	NaN	POLYGON ((535280.948 177955.306, 535280.821 17...

5 rows × 33 columns

• Let’s plot our data and see what we have:

union.plot(facecolor='#28B463', edgecolor='white');

As you can see, that was how we make intersection, difference and union in overlay analysis in Python.

However, it is not yet done to answer our question above. We are looking for the number and location of bicycle theft in the South part of London based on the data from the Metropolitan Police Service. The data is data/bicycle-theft.csv, and it has to be convert to a GeoDataFrame for overlay analysis.

Practical exercise: Bicycle Theft in London

• Let’s first read the data into Python using pandas.read_csv() to read .csv -file.

# import necessary module
import pandas as pd

# Set file paths
bicycle_fp = "data/bicycle-theft.csv"

# Read files
bicycle = pd.read_csv(bicycle_fp)
bicycle.head()

	latitude	longitude
0	51.552200	0.153621
1	51.545110	0.165546
2	51.536326	0.076951
3	51.535612	0.079154
4	51.537440	0.080059

• Create a point geometry of bicycle theft by using Point() from Shapely and gpd.GeoDataFrame()

# Since we will create Points, so we will use Point function from Shapely
from shapely.geometry import Point

# Create an empty list
point_geo = []

# A loop for creating point geometry
for i,j in zip(bicycle.longitude, bicycle.latitude):

    # make point geometry using Point function
    point = Point(i,j)

    # locate all the result in the empty list created above
    point_geo.append(point)

• Now we have a list of point geometry, but it is still a list not a geodataframe. To be able to conduct analysis, we have to convert a list to a GeoDataFrame which will contain a proper coordinate system and so forth. Because the latitude and longitude are in decimal degree, the crs should be epsg:4326 which is the world coordinate system - WGS 84.

• You can also determine the crs from latitude and longitude by importing them to Google Earth Pro and save it as a kmz file. After that, by import this kmz file to QGIS, you can clearly see its original crs.

from pyproj import CRS

# Create a geopandas dataframe
wgs84 = CRS.from_epsg(4326)
geo_bicycle = gpd.GeoDataFrame({'geometry':point_geo}, crs=wgs84)
geo_bicycle.head()

	geometry
0	POINT (0.15362 51.55220)
1	POINT (0.16555 51.54511)
2	POINT (0.07695 51.53633)
3	POINT (0.07915 51.53561)
4	POINT (0.08006 51.53744)

geo_bicycle.plot()

<AxesSubplot:>

# Check if the crs of geo_bicycle is consistent with others'.
assert geo_bicycle.crs == border.crs, "CRS are not the same between layers!"

C:\Users\a9418\AppData\Roaming\Python\Python37\site-packages\pyproj\crs\crs.py:68: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
  return _prepare_from_string(" ".join(pjargs))

---------------------------------------------------------------------------
AssertionError                            Traceback (most recent call last)
<ipython-input-17-eb3361acb26c> in <module>
      1 # Check if the crs of geo_bicycle is consistent with others'.
----> 2 assert geo_bicycle.crs == border.crs, "CRS are not the same between layers!"

AssertionError: CRS are not the same between layers!

# Create plot to view the geometry location when the crs are different
fig, ax = plt.subplots(figsize = (5,5))
border.plot(ax = ax, facecolor='#ADB6B5', edgecolor='white')
geo_bicycle.plot(ax = ax, markersize = 0.2, color='blue')
plt.show();

• Since the crs are not consistent with each other, let’s change its original crs to fit with others’ crs.

# Re-project new crs
geo_bicycle = geo_bicycle.to_crs(border.crs)
geo_bicycle.crs

C:\Users\a9418\AppData\Roaming\Python\Python37\site-packages\pyproj\crs\crs.py:68: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
  return _prepare_from_string(" ".join(pjargs))

{'init': 'epsg:27700'}

# Check if the crs of geo_bicycle is consistent with others'.
assert geo_bicycle.crs == border.crs, "CRS are not the same between layers!"

# Create plot to view the geometry location when the crs are the same
fig, ax = plt.subplots(figsize = (5,5))
border.plot(ax = ax, facecolor='#ADB6B5', edgecolor='white')
geo_bicycle.plot(ax = ax, markersize = 0.2, color='blue')
plt.show();

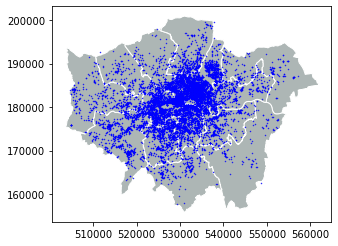

• Great! Everything is okay, right now! Let’s see the location of bicycle theft in a map.

# Create a figure with one subplot
fig, ax = plt.subplots(figsize=(5,7))

# Plot the layers
border.plot(ax=ax, facecolor='#ADB6B5', edgecolor='white')
geo_bicycle.plot(ax=ax, markersize = 0.2, color='blue')
south_river.plot(ax=ax, facecolor='None', edgecolor='red', linewidth = 1.5)

plt.show();

geo_bicycle.to_file('result/resut.shp')

• As we can see, there are a lot of bicycle theft in the South part of London. Let’s use overlay() to extract the location points inside the polygon based on intersection method.

# Clip the points inside the red polygon
bicycle_south = gpd.overlay(border, south_river, how='intersection')

• Let’s see the number of bicycle theft in the South of London

print('The number of bicycle theft in southern London is:', len(bicycle_south),'bikes.')

The number of bicycle theft in southern London is: 9 bikes.

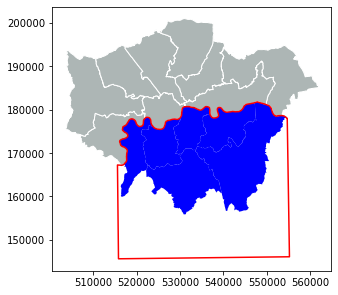

• Let’s plot 3490 location in a map

# Create a figure with one subplot
fig, ax = plt.subplots(figsize=(5,7))

# Plot the layers
border.plot(ax=ax, facecolor='#ADB6B5', edgecolor='white')
bicycle_south.plot(ax=ax, markersize = 0.2, color='blue')
south_river.plot(ax=ax, facecolor='None', edgecolor='red', linewidth = 1.5)

plt.show();

• It’s time to save the result to a GeoJSON file that is commonly used file format nowadays for storing spatial data.

# set output path
outfp = 'result/bicycle_south.shp'

# export to GeoJSON
bicycle_south.to_file(outfp)

b. Data aggregation

Data aggregation is very uselful when you want to combine or merge geometries together based on its similarity; for example, grouping the same type of fishes, building, region and other similar categories. As in our case, we are going to categorize the region of New York into East, West, Central and Long Island by zone in the column NYSP_ZONE.

For doing the aggregation we will use a function called dissolve() that takes as input from the column that will be used for conducting the aggregation:

• Let’s first read the data

# Set filepath
fp = "data/NY_counties_shoreline.geojson"

# Read file using gpd.read_file()
ny_state = gpd.read_file(fp)

ny_state

	NAME	ABBREV	GNIS_ID	FIPS_CODE	SWIS	NYSP_ZONE	POP1990	POP2000	POP2010	POP2020	DOS_LL	DOSLL_DATE	NYC	CALC_SQ_MI	DATEMOD	Shape_Leng	Shape_Area	geometry
0	Albany	ALBA	974099	36001	010000	East	292594	294565	304204	0	None	None	N	532.791779	2017-11-10	166077.834242	1.379924e+09	MULTIPOLYGON (((608219.061 4737612.320, 608193...
1	Allegany	ALLE	974100	36003	020000	West	50470	49927	48946	0	None	None	N	1035.209131	2019-04-26	210499.339279	2.681179e+09	MULTIPOLYGON (((250193.017 4712087.456, 250192...
2	Bronx	BRON	974101	36005	600000	Long Island	1203789	1332650	1385108	0	None	None	Y	42.313958	2019-10-04	110631.250768	1.095926e+08	MULTIPOLYGON (((593060.323 4516716.000, 593002...
3	Broome	BROO	974102	36007	030000	Central	212160	200536	200600	0	None	None	N	715.287465	2019-04-26	227933.332021	1.852586e+09	MULTIPOLYGON (((465447.405 4671514.322, 465436...
4	Cattaraugus	CATT	974103	36009	040000	West	84234	83955	80317	0	None	None	N	1324.309219	2019-04-26	276084.505560	3.429945e+09	MULTIPOLYGON (((215534.406 4715146.842, 215536...
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
57	Wyoming	WYOM	974158	36121	560000	West	42507	43424	42155	0	None	None	N	596.822633	2018-09-20	176096.925232	1.545764e+09	MULTIPOLYGON (((217004.051 4751905.154, 217012...
58	Yates	YATE	974159	36123	570000	Central	22810	24621	25348	0	None	None	N	375.771539	2018-02-08	141535.638713	9.732438e+08	MULTIPOLYGON (((338694.813 4736525.498, 338999...
59	Madison	MADI	974125	36053	250000	Central	69120	69441	73442	0	None	None	N	660.767520	2018-07-18	256920.383650	1.711380e+09	MULTIPOLYGON (((428112.869 4778465.622, 428112...
60	Oneida	ONEI	974131	36065	300000	Central	250836	235469	234878	0	None	None	N	1257.212143	2018-03-09	307349.034135	3.256165e+09	MULTIPOLYGON (((482676.562 4747513.488, 482378...
61	Jefferson	JEFF	974121	36045	220000	Central	110943	111738	116229	0	None	None	N	1286.010807	2018-11-06	722815.761071	3.330753e+09	MULTIPOLYGON (((390245.995 4859325.132, 390310...

62 rows × 18 columns

# Plot geometry
ny_state.plot();

If we look at column NYSP_ZONE, each geometry belongs to different zone. Sometimes, there are so many categories in a long list. Then it will be hard to observe every row. Therefore, in order to quickly check how many categories and what they are in each columns, we can just simply use function called .unique().

• Now, let’s check the categories in column NYSP_ZONE

# check categories in column
print(ny_state['NYSP_ZONE'].unique())

['East' 'West' 'Long Island' 'Central']

# dissolve polygon based on zone
polygon = ny_state.dissolve(by='NYSP_ZONE')
polygon

	geometry	NAME	ABBREV	GNIS_ID	FIPS_CODE	SWIS	POP1990	POP2000	POP2010	POP2020	DOS_LL	DOSLL_DATE	NYC	CALC_SQ_MI	DATEMOD	Shape_Leng	Shape_Area
NYSP_ZONE
Central	MULTIPOLYGON (((387917.657 4859852.977, 387818...	Broome	BROO	974102	36007	030000	212160	200536	200600	0	None	None	N	715.287465	2019-04-26	227933.332021	1.852586e+09
East	MULTIPOLYGON (((610809.635 4533652.000, 610804...	Albany	ALBA	974099	36001	010000	292594	294565	304204	0	None	None	N	532.791779	2017-11-10	166077.834242	1.379924e+09
Long Island	MULTIPOLYGON (((580478.885 4490937.000, 580407...	Bronx	BRON	974101	36005	600000	1203789	1332650	1385108	0	None	None	Y	42.313958	2019-10-04	110631.250768	1.095926e+08
West	MULTIPOLYGON (((181132.417 4760968.000, 181499...	Allegany	ALLE	974100	36003	020000	50470	49927	48946	0	None	None	N	1035.209131	2019-04-26	210499.339279	2.681179e+09

import matplotlib.pyplot as plt
from matplotlib.patches import Patch
from matplotlib.lines import Line2D

# Create a figure with one subplot
fig, ax = plt.subplots(figsize=(5,5))
color = ['#528413', '#2088B2', '#D86E3F', '#B52735']

# Plot boundary
polygon['geometry'].plot(ax=ax, color= color)

# Add legend
plt.legend(loc=2, handles=[Patch(color='#B52735', label='West'),
                            Patch(color='#528413', label='Central'),
                            Patch(color='#2088B2', label='East'),
                            Patch(color='#D86E3F', label='Long Island')])

plt.title('New York State')
plt.tight_layout()

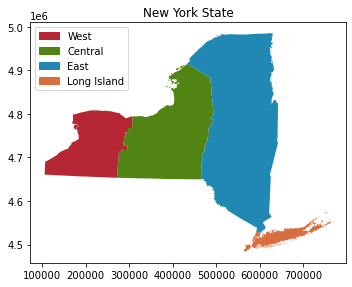

As you can see, we have merged 62 geometries into 4 geometries based on regions.

---

2. Data classification

Data classification is a common method in GIS to add symbology to the data based on specific criteria or map classifiers. The well-known map classifiers in GIS include Equal Count (Quantile), Equal Interval, Logarithmic Scale, etc. Each classifier is described in Data classification methods.

In Python, we will use Pysal-module which is an extensive library including various functions and tools for spatial data analysis. This module includes various classifiers for data visualization. The classifiers in Pysal-module are as follows:

• Box_Plot

• Equal_Interval

• HeadTail_Breaks

• Jenks_Caspall

• Jenks_Caspall_Forced

• Jenks_Caspall_Sampled

• Max_P_Classifier

• Maximum_Breaks

• Natural_Breaks

• Quantiles

• Percentiles

• Std_Mean

• User_Defined

Check further details in Source code for mapclassify.classifiers

In this section, we use the data of US COVID-19 Daily Cases by counties from Harvard Dataverse to classify data based on ready-made classifiers in Pysal-module and self-made classifier to visualize the data features.

a. Pysal classifier

• Let’s start first by importing the data

# import necessary module
import geopandas as gpd

# input filepath
fp = 'data/Covid19_confirmed_cases_for_US_counties.shp'

# read data
dataframe = gpd.read_file(fp)

# check the number of counties
print('There are',len(dataframe),'counties.')

# check the head row in dataframe
dataframe.head()

There are 3108 counties.

	County Nam	State	POP10	HHD10	covid	geometry
0	Autauga County	AL	54571.0	20221.0	6879.0	POLYGON ((-86.90310 32.54063, -86.90312 32.540...
1	Baldwin County	AL	182265.0	73180.0	20847.0	POLYGON ((-87.99069 30.55550, -87.99051 30.560...
2	Barbour County	AL	27457.0	9820.0	2296.0	POLYGON ((-85.42982 32.04599, -85.42986 32.046...
3	Bibb County	AL	22915.0	7953.0	2584.0	POLYGON ((-87.31227 33.08623, -87.31218 33.087...
4	Blount County	AL	57322.0	21578.0	6571.0	POLYGON ((-86.74919 33.99760, -86.74903 33.997...

# plot covid confirmed case
dataframe.plot(column="covid", legend=True)

<AxesSubplot:>

As you can see from the dataframe and the map, there are more than 3000 counties with the information about covid confirmed cases, population and households, while the data is plotted by default without specific classification. Hence, by using ready-made classifiers from Pysal-module, we will be able to create classes for plotting.

• Plot covid confirmed case with different classifier

# import necessary module
import mapclassify

# Standard Deviation classifier

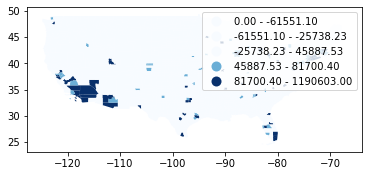

dataframe.plot(column="covid", scheme="Std_Mean", k=5, cmap = 'Blues', legend=True);

# Table of classification
mapclassify.StdMean(y=dataframe['covid'])

StdMean

        Interval           Count
--------------------------------
(      -inf,  -61551.10] |     0
( -61551.10,  -25738.23] |     0
( -25738.23,   45887.53] |  2971
(  45887.53,   81700.40] |    69
(  81700.40, 1190603.00] |    68

# Equal interval classifier
dataframe.plot(column="covid", scheme="Equal_Interval", k=5, cmap = 'Blues', legend=True);

# Table of classification
mapclassify.EqualInterval(y=dataframe['covid'], k=5)

EqualInterval

        Interval           Count
--------------------------------
[      0.00,  238120.60] |  3094
( 238120.60,  476241.20] |    10
( 476241.20,  714361.80] |     3
( 714361.80,  952482.40] |     0
( 952482.40, 1190603.00] |     1

# Equal count (Quantiles) classifier

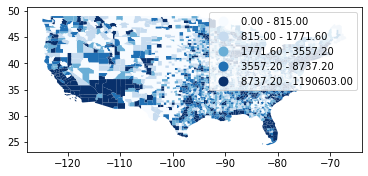

dataframe.plot(column="covid", scheme="Quantiles", k=5, cmap = 'Blues', legend=True);

# Table of classification
mapclassify.Quantiles(y=dataframe['covid'], k=5)

Quantiles

        Interval           Count
--------------------------------
[      0.00,     815.00] |   623
(    815.00,    1771.60] |   620
(   1771.60,    3557.20] |   622
(   3557.20,    8737.20] |   621
(   8737.20, 1190603.00] |   622

# Natural break classifier

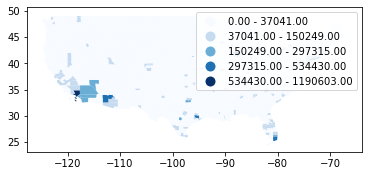

dataframe.plot(column="covid", scheme="Natural_Breaks", k=5, cmap = 'Blues', legend=True);

# Table of classification
mapclassify.NaturalBreaks(y=dataframe['covid'], k=5)

NaturalBreaks

        Interval           Count
--------------------------------
[      0.00,   37041.00] |  2929
(  37041.00,  150249.00] |   160
( 150249.00,  297315.00] |    14
( 297315.00,  534430.00] |     4
( 534430.00, 1190603.00] |     1

# Box plot classifier

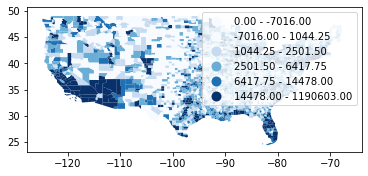

dataframe.plot(column="covid", scheme="Box_Plot", k=5, cmap = 'Blues', legend=True);

# Table of classification
mapclassify.BoxPlot(y=dataframe['covid'])

BoxPlot

        Interval           Count
--------------------------------
(      -inf,   -7016.00] |     0
(  -7016.00,    1044.25] |   777
(   1044.25,    2501.50] |   777
(   2501.50,    6417.75] |   777
(   6417.75,   14478.00] |   356
(  14478.00, 1190603.00] |   421

• Plot population, household and covid with Quantiles classifier

import matplotlib.pyplot as plt
%matplotlib inline

# Initialize subplots

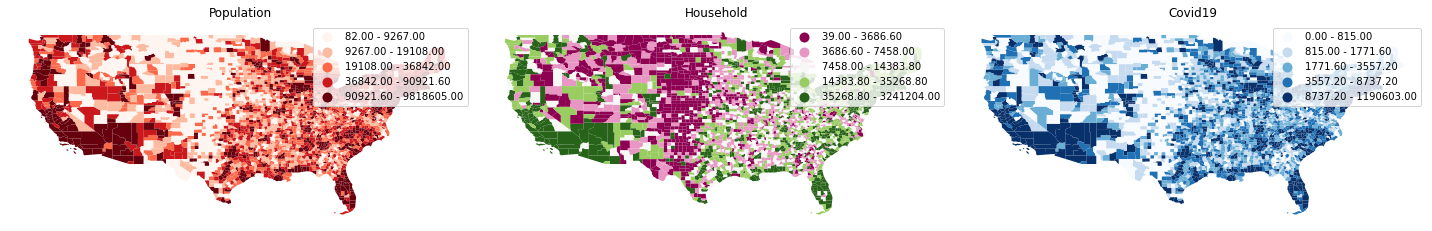

fig, (ax1, ax2, ax3) = plt.subplots(ncols=3, nrows=1, figsize=(20, 10), sharey=True)

# Equal count (Quantiles) classifier
dataframe.plot(ax=ax1, column="POP10", scheme="Quantiles", k=5, cmap = 'Reds', legend=True);
dataframe.plot(ax=ax2, column="HHD10", scheme="Quantiles", k=5, cmap = 'PiYG', legend=True);
dataframe.plot(ax=ax3, column="covid", scheme="Quantiles", k=5, cmap = 'Blues', legend=True);

# Add titles
ax1.set_title("Population")
ax2.set_title("Household")
ax3.set_title("Covid19")

# Remove axis
ax1.axis('off')
ax2.axis('off')
ax3.axis('off')

plt.tight_layout()
plt.show();

Assign classes to dataframe (Additional)

By using make() function we can take the number of desired classes from classifier as input parameter.

# Create a Natural Breaks classifier
classifier = mapclassify.Quantiles.make(k=5)

# Rename the column so that we know that it was classified with natural breaks
dataframe['qt_covid'] = dataframe[['covid']].apply(classifier)

# Check the original values and classification
dataframe[['covid', 'qt_covid']].head()

	covid	qt_covid
0	6879.0	3
1	20847.0	4
2	2296.0	2
3	2584.0	2
4	6571.0	3

b. Custom classifer

The purpose of this section is to classify the data feature based on criteria which can be whatever, such as:

1. the households are less than 7500

AND

2. confirmed covid cases are less than 5000
------------------------------------------------------

IF TRUE: ==> The areas are less dangerous.
IF NOT TRUE: ==> The areas are very dangerous.

• Let’s create a fuction called custom_classifier that takes two above criteria into account:

def custom_classifier(row, src_col1, src_col2, threshold1, threshold2, output_col):
   # If the value in src_col1 is LOWER than the threshold1 value AND the value in src_col2 is LOWER than the threshold2 value, give value 1, otherwise give 0

   if row[src_col1] < threshold1 and row[src_col2] < threshold2:
       row[output_col] = 1

   # If area of input geometry is higher than the threshold value update with value 1
   else:
       row[output_col] = 0

   # Return the updated row
   return row

• Apply the function we created to the dataframe.

# Create column for the classification results
dataframe["dangerous_area"] = None

# Use the function
result = dataframe.apply(custom_classifier, src_col1='HHD10', src_col2='covid', threshold1=7500, threshold2=5000, output_col="dangerous_area", axis=1)

# See the first rows
result

	County Nam	State	POP10	HHD10	covid	geometry	qt_covid	dangerous_area
0	Autauga County	AL	54571.0	20221.0	6879.0	POLYGON ((-86.90310 32.54063, -86.90312 32.540...	3	0
1	Baldwin County	AL	182265.0	73180.0	20847.0	POLYGON ((-87.99069 30.55550, -87.99051 30.560...	4	0
2	Barbour County	AL	27457.0	9820.0	2296.0	POLYGON ((-85.42982 32.04599, -85.42986 32.046...	2	0
3	Bibb County	AL	22915.0	7953.0	2584.0	POLYGON ((-87.31227 33.08623, -87.31218 33.087...	2	0
4	Blount County	AL	57322.0	21578.0	6571.0	POLYGON ((-86.74919 33.99760, -86.74903 33.997...	3	0
...	...	...	...	...	...	...	...	...
3103	Sublette County	WY	10247.0	3906.0	765.0	POLYGON ((-109.49667 42.26333, -109.49213 42.2...	0	1
3104	Sweetwater County	WY	43806.0	16475.0	4159.0	POLYGON ((-111.04910 44.13237, -111.04911 44.1...	3	0
3105	Teton County	WY	21294.0	8973.0	3719.0	POLYGON ((-110.60681 40.99626, -110.60690 40.9...	3	0
3106	Uinta County	WY	21118.0	7668.0	2158.0	POLYGON ((-107.63350 43.64635, -107.63353 43.6...	2	0
3107	Washakie County	WY	8533.0	3492.0	898.0	POLYGON ((-105.07914 43.81301, -105.07914 43.8...	1	1

3108 rows × 8 columns

# Get value counts
result['dangerous_area'].value_counts()

0    1857
1    1251
Name: dangerous_area, dtype: int64

There seems to be 1857 less degerous areas and 1251 very dangerous area from our classification.

• Let’s see where those area are located.

# Plot

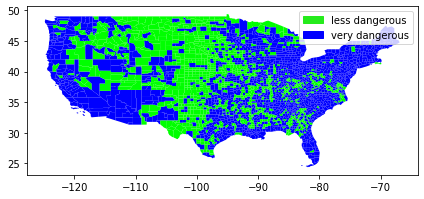

result.plot(column="dangerous_area", cmap = 'brg', linewidth=0);

# Add legend
plt.legend(loc='best', handles=[Patch(color='#25EB1C', label='less dangerous'),
                            Patch(color='blue', label='very dangerous')])

# Use tight layour
plt.tight_layout()

---

previous

Session 3: Geocoding and Nearest Neighbour Analysis

next

Session 5: Plotting Static and Interactive Map on Leaftlet
